Papa-Alpha Rudder Rigging Tool
Papa-Alpha Rudder Rigging Tool
Free shipping for orders $400 or more
Part Number:Tool-##
Regular price
$89.99 USD
Regular price
Sale price
$89.99 USD
Shipping calculated at checkout.
Description
Description
See below for applicability
Specs
Specs
CAD designed Aircraft aluminum, CNC cut, powder coated, UV printed for ultra-light weight and extreme durability.
Quantity
Couldn't load pickup availability
Papa Alpha Rudder Rigging Tools
Revived from original Piper factory drawings, our rudder rigging tools are precision CNC cut from aircraft-grade aluminum, powder coated for durability, and refined for everyday shop use. We’ve maintained the critical geometry for accurate rigging while trimming unnecessary weight and adding modern usability features. Please review the aircraft applicability chart below to select the correct reference tool.

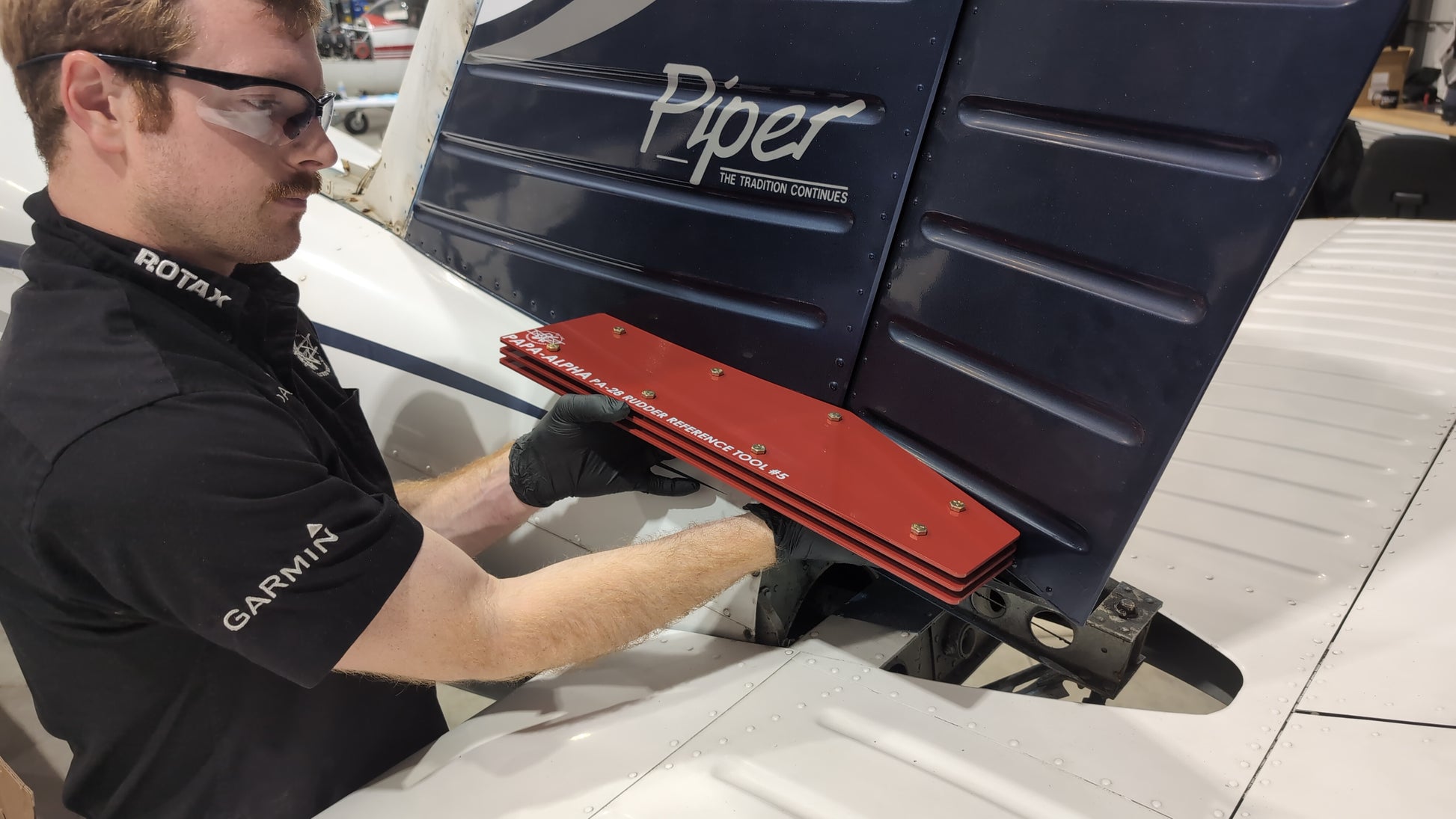

Note: The image shown is representative—tool design varies by airframe model and serial number.
| Aircraft Model | S/N | Rudder |
| PA-23-160 | 23-1 thru 23-2046 | N/A |
| PA-23-235 | 27-1 thru 27-504 | PA-23 Aztec-Apache Rudder Reference Tool #1 |
| PA-23-250 | 27-2000 thru 27-4916 | PA-23 Aztec-Apache Rudder Reference Tool #1 |
| PA-23-250 | 27-7304917 thru 27-7554168 | PA-23 Aztec-Apache Rudder Reference Tool #1 |
| PA-23-250 | 27-7654001 thru 27-7954121 | PA-23 Aztec Rudder Reference Tool #2 |
| PA-23-250 | 27-8054001 thru 27-8154030 | PA-23 Aztec Rudder Reference Tool #2 |
| PA-23-250 | 27-505 thru 27-622 | PA-23 Aztec-Apache Rudder Reference Tool #1 |
| PA-24-180/PA-24-250 | 24-1 thru 24-3687 | N/A |
| PA-24-260 | 24-4000 thru 24-5041 | N/A |
| PA-24-400 | 26-3 thru 26-148 | N/A |
| PA-28-140 | 28-20002 thru 28-26946 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-140 | 28-7125001 thru 28-7725290 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-150 | 28-1 thru 28-4377 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-151 | 28-7415001 thru 28-7715314 | PA-28 Rudder Reference Tool #4 |
| PA-28-160 | 28-1 thru 28-4377 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-161 | 2841001 thru 2841364 | PA-28 Rudder Reference Tool #4 |
| PA-28-161 | 2816001 thru 2816109 | PA-28 Rudder Reference Tool #4 |
| PA-28-161 | 28-7716001 thru 28-8616057 | PA-28 Rudder Reference Tool #4 |
| PA-28-161 | 2842001 thru 2842420 | PA-28 Rudder Reference Tool #4 |
| PA-28-161 | 2816110 thru 2816119 | PA-28 Rudder Reference Tool #4 |
| PA-28-180 | 28-671 thru 28-5859 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-180 | 28-7110001 THRU 28-7710089 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-181 | 2843001 thru 2843999 | PA-28 Rudder Reference Tool #4 |
| PA-28-181 | 2881001 and up | PA-28 Rudder Reference Tool #4 |
| PA-28-181 | 28-7690001 thru 28-8690056 | PA-28 Archer II/III Rudder Reference Tool #5 |
| PA-28-181 | 2890001 thru 2890205 | PA-28 Archer II/III Rudder Reference Tool #5 |
| PA-28-181 | 2890206 thru 2890231 | PA-28 Archer II/III Rudder Reference Tool #5 |
| PA-28-181 | 28020001 and up | PA-28 Rudder Reference Tool #4 |
| PA-28-201T | 287921001 thru 287921095 | PA-28 Rudder Reference Tool #4 |
| PA-28-235 | 28-10003 thru 28-11378 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-235 | 28-7110001 thru 28-7710089 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-236 | 2811001 thru 2811050 | PA-28/32 Rudder Reference Tool #3 |
| PA-28-236 | 28-7911002 thru 28-8611009 | PA-28/32 Rudder Reference Tool #3 |
| PA-28R-180 | 28R-30005 thru 28R-31270 | PA-28/32 Rudder Reference Tool #3 |
| PA-28R-180 | 28R-7130001 thru 28R-7130013 | PA-28/32 Rudder Reference Tool #3 |
| PA-28R-200 | 28R-35001 thru 28R-35820, and 28R-30482 | PA-28/32 Rudder Reference Tool #3 |
| PA-28R-200 | 28R-7135001 thru 28R-7635462 | PA-28/32 Rudder Reference Tool #3 |
| PA-28R-201 | 2837001 thru 2837061 | PA-28 Rudder Reference Tool #4 |
| PA-28R-201 | 28R-7737001 thru 28R-7837317 | PA-28 Rudder Reference Tool #4 |
| PA-28R-201 | 2844001 and up | PA-28 Rudder Reference Tool #4 |
| PA-28R-201 | 28R-7918002 thru 28R-8218026 | PA-28 Rudder Reference Tool #6 |
| PA-28R-201T | 2803001 thru 2803015 | PA-28 Rudder Reference Tool #4 |
| PA-28R-201T | 28R-7703002 thru 28R-7803372 | PA-28 Rudder Reference Tool #4 |
| PA-28RT-201T | 2831001 thru 2831038 | PA-28 Rudder Reference Tool #6 |
| PA-28RT-201T | 28R-7931002 thru 28R-8631004 | PA-28 Rudder Reference Tool #6 |
| PA-30 | 30-2 thru 30-901, less 30-853 | N/A |
| PA-30 | 30-853 and 30-902 thru 30-1744, less 30-1717 | N/A |
| PA-30 | 30-1717 and 30-1745 thru 30-2000 | N/A |
| PA-31-300 | 31-228 thru 31-511 | PA-31 Rudder Reference Tool #7 |
| PA-31-310 | 31-5 thru 31-900 | PA-31 Rudder Reference Tool #7 |
| PA-31-310 | 31-7300901 thru 31-7512072 | PA-31 Rudder Reference Tool #7 |
| PA-31-325 | 31-7512006 thru 31-8312019, and 31-7400990 | PA-31 Rudder Reference Tool #7 |
| PA-31-350 | 31-5001, 31-5002, 31-5003 | PA-31 Rudder Reference Tool #7 |
| PA-31-350 | 31-7305005 thru 31-8452021 | PA-31 Rudder Reference Tool #7 |
| PA-31-350 T1020 | 31-8253001 thru 31-8453021 | PA-31 Rudder Reference Tool #7 |
| PA-31P | 31P-3 thru 31P-80 | PA-31 Rudder Reference Tool #7 |
| PA-31P | 31P-7300110 thru 31P-7730012 | PA-31 Rudder Reference Tool #7 |
| PA-31P-350 | 31P-8414001 thru 31P-8414050 | PA-31 Rudder Reference Tool #7 |
| PA-31T | 31T-7400002 thru 31T-7720069 | PA-31 Rudder Reference Tool #7 |
| PA-31T | 31T-7820001 thru 31T-8120104 | PA-31 Rudder Reference Tool #7 |
| PA-31T1 | 31T-7804002 thru 31T-8104101 | PA-31 Rudder Reference Tool #7 |
| PA-31T1 | 31T-8304002 thru 31T-1104017 | PA-31 Rudder Reference Tool #7 |
| PA-31T2 | 31T-8166002 thru 31T-1166008 | PA-31 Rudder Reference Tool #7 |
| PA-31T3 T1040 | 31T-5575001 | PA-31 Rudder Reference Tool #7 |
| PA-31T3 T1040 | 31T-8275001 thru 31T-8275017, 31T-8275025 | PA-31 Rudder Reference Tool #7 |
| PA-31T3 T1040 | 31T-8375001 thru 31T-8375003, 31T-8375005 | PA-31 Rudder Reference Tool #7 |
| PA-31T3 T1040 | 31T-8475001 | PA-31 Rudder Reference Tool #7 |
| PA-32-260 | 32-1 thru 32-1297 | PA-28/32 Rudder Reference Tool #3 |
| PA-32-260 | 32-7100001 thru 32-7800008 | PA-28/32 Rudder Reference Tool #3 |
| PA-32-300 | 32-40000 thru 32-40974 | PA-28/32 Rudder Reference Tool #3 |
| PA-32-300 | 32-7140001 thru 32-7940290 | PA-28/32 Rudder Reference Tool #3 |
| PA-32-301 | 3206001 thru 3206098 | PA-28/32 Rudder Reference Tool #3 |
| PA-32-301 | 32-8006003 thru 32-8606023 | PA-28/32 Rudder Reference Tool #3 |
| PA-32-301FT | 3232001 thru 3232074 | PA-28/32 Rudder Reference Tool #3 |
| PA-32-301XTC | 3255001 thru 3255051 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-300 | 32R-7680003 thru 32R-7880068 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-301 | 3213042 thru 3213103 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-301 | 3246001 thru 3246244 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-301 | 3213001 thru 3213041 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-301 | 32R-8013001 thru 32R-8613005 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-301T | 3257001 thru 3257493 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-301T | 3229001 thru 3229003 | PA-28/32 Rudder Reference Tool #3 |
| PA-32R-301T | 32R-8029001 thru 32R-8629006 | PA-28/32 Rudder Reference Tool #3 |
| PA-32RT-300 | 32R-7885002 thru 32R-7985106 | PA-32RT/44 Rudder Reference Tool #8 |
| PA-32RT-300T | 32R-7887002 thru 32R-7987126 | PA-32RT/44 Rudder Reference Tool #8 |
| PA-34-200 | 34-7250001 thru 34-7450220 | PA-34 Rudder Reference Tool #9 |
| PA-34-200T | 34-7570001 thru 34-8170092 | PA-34 Rudder Reference Tool #9 |
| PA-34-220T | 3433001 thru 3448035 | PA-34 Rudder Reference Tool #9 |
| PA-34-220T | 34-8133001 thru 34-8633014 | PA-34 Rudder Reference Tool #9 |
| PA-34-220T | 3447001 thru 3447029 | PA-34 Rudder Reference Tool #9 |
| PA-34-220T | 3448038 thru 3448079 | PA-34 Rudder Reference Tool #9 |
| PA-34-220T | 3449001 thru 3449514 | PA-34 Rudder Reference Tool #9 |
| PA-36-285 | 36-7360001 thru 36-7660135 | N/A |
| PA-36-300 | N/A | |
| PA-36-375 | 36-7802001 thru 36-8302025 | N/A |
| PA-38-112 | 38-78A0001 thru 38-82A0122 | N/A |
| PA-39 | 39-1 thru 39-155 | N/A |
| PA-42 | 42-7800001, 42-7800002, 43-7801003, and 42-7801004 | N/A |
| PA-42 | 42-8001001 thru 42-8001106 | N/A |
| PA-42-1000 | 42-5527001 and up | N/A |
| PA-42-720 | 42-5501003 thru 42-5501023 | N/A |
| PA-42-720 | 42-5501025 thru 42-5501027 | N/A |
| PA-42-720 | 42-5501029 thru 42-5501031 | N/A |
| PA-42-720 | 42-5501033, and 42-5501039 | N/A |
| PA-42-720 | 42-8301001 and 42-8301002 | N/A |
| PA-42-720 | 42-5501040 thru 42-5501060 | N/A |
| PA-44-180 | 44-7995001 thru 44-8195026 | PA-32RT/44 Rudder Reference Tool #8 |
| PA-44-180 | 44-8107001 thru 44-8207020 | PA-32RT/44 Rudder Reference Tool #8 |
| PA-44-180 | 44-95001 thru 44-4495013 | PA-32RT/44 Rudder Reference Tool #8 |
| PA-44-180 | 44-96001 thru 44-96571 | PA-44 Rudder Reference Tool #10 |
