Garmin GAD 13, GTP 59, Conn Kit
Garmin GAD 13, GTP 59, Conn Kit
Free shipping for orders $400 or more
Part Number:010-02203-K0
Contact us for package pricing
Description
Description

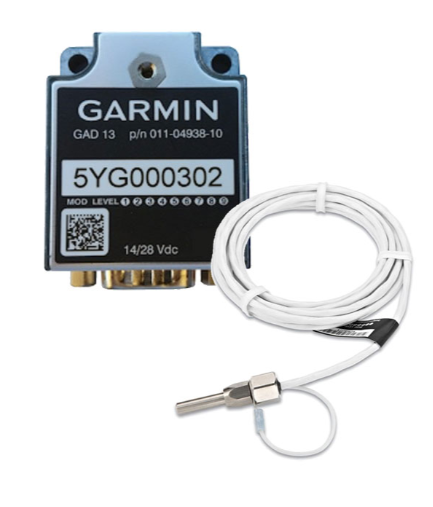

This OAT probe interface is FAA-PMA approved and can be added to the CAN bus for an existing single or dual G5 installation and enable the display of Outside Air Temperature (OAT), True Airspeed (TAS), and Winds Aloft. The GAD 13 interface is available as a bare unit for usage with a 3rd party OAT probe, or as a complete kit including a GTP 59 RTD precision OAT probe and connector kit.
Specs
Specs
Couldn't load pickup availability
The G5 electronic flight instrument is now capable of displaying outside air temperature (OAT) and true airspeed (TAS) using a temperature probe and the new Garmin GAD™ 13 adapter. Similar to other Garmin products, OAT displays along the bottom of the airspeed indicator, while TAS is displayed on the top of the airspeed indicator. When G5 is configured as a directional gyro (DG) or horizontal situation indicator (HSI), wind speed and direction is also displayed in the upper left corner of the G5. For standalone G5 installations, the GAD 13 and a temperature probe are required. For aircraft where G5 is paired with a compatible PFD such as G3X Touch, G5 will display this information with a software update. New for experimental aircraft, G5 can also display density altitude below the altimeter while the aircraft is on the ground.
