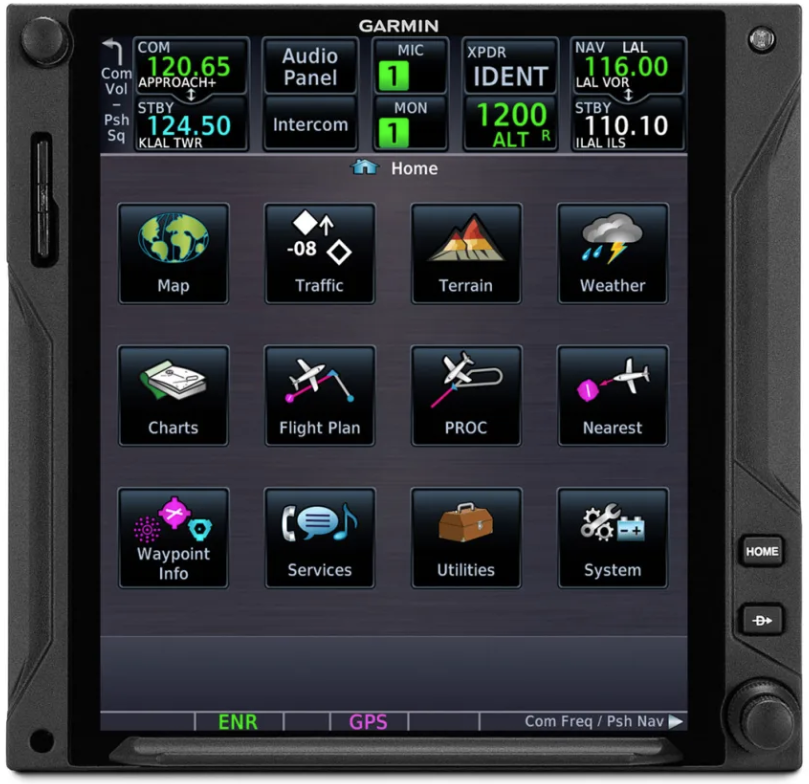

Garmin GTN™ 725Xi, GPS/MFD

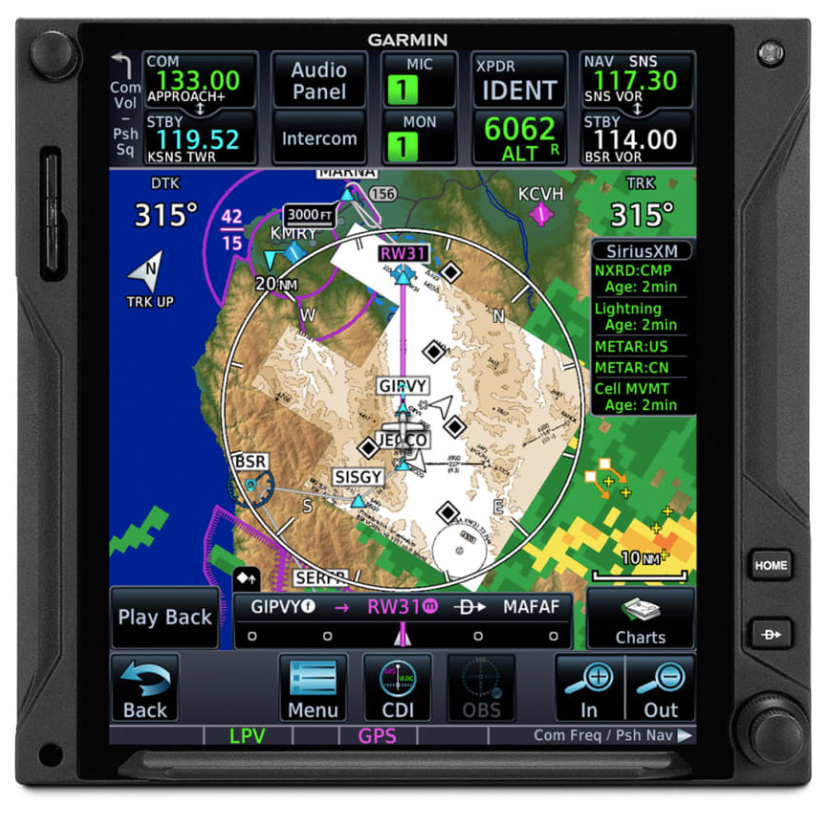

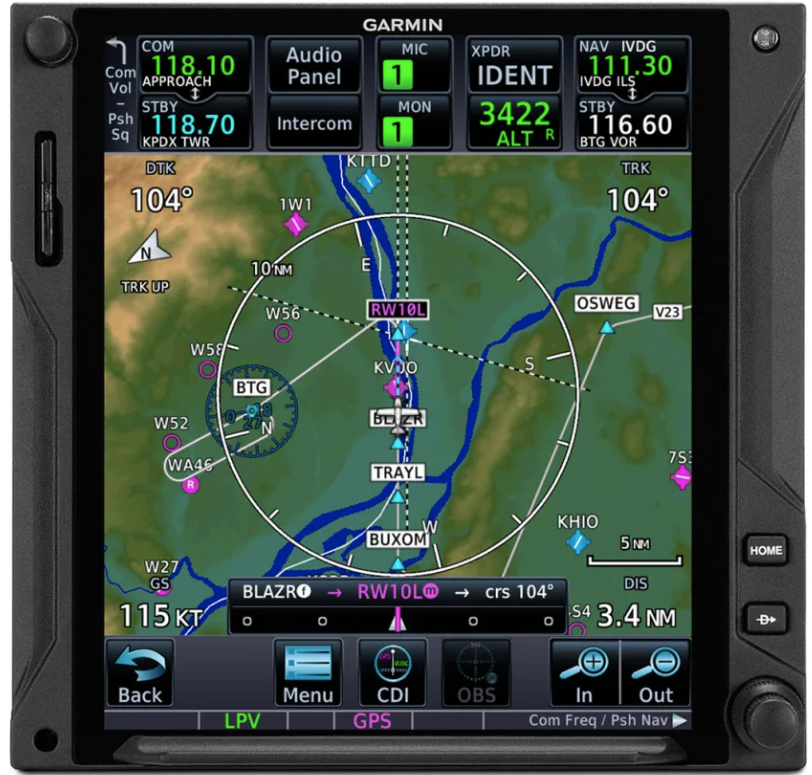

MULTIFUNCTION DISPLAY
Supporting multiple inputs, the 6.9” display can put moving maps, terrain, traffic2, weather2, airport diagrams and more at your fingertips.


EASY DATA ENTRY
Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.


TELL IT, TUNE IT
Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke2.

PINCH, SWIPE GESTURES
A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.

SPACE-SAVING AUDIO
To streamline your avionics stack, GTN 725Xi can double as the control panel for your audio system when it’s paired with one of our GMA™ 35 remote audio units (sold separately).

QUICK PAGE ACCESS VIA KNOBS
The unit’s dual concentric knob controls now offer quick access to select pages. The outer knob can cycle through as many as 9 custom-assigned pages, with the inner knob supporting functions such as zooming or scrolling on the page displayed.

TSO applicability: C74d Class A; C112e; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C194; C195b Class B1, B3, B5, B7; C209

Display size: 6.9" (175.3 mm) diagonal
Display resolution: 834 pixels (W) x 986 pixels (H)
Unit bezel height: 6.00" (152.0 mm)
Unit bezel width: 6.25" (159.0 mm)
Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 5.7 lbs (2.60 kg)
Input voltage range: 11 VDC - 33 VDC
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
Maximum velocity: 1,166 knots
Position update Interval: 0.2 sec (5 Hz)
