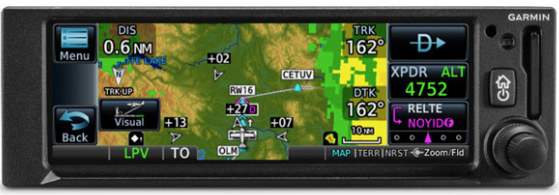

Garmin GPS 175 GPS Navigator With GA 35 GPS Antenna Kit STC For Certified Aircraft

Overview
LPV Approaches, Priced for Your Aircraft
Slim, all-in-one touchscreen GPS navigator for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and experimental/amateur-built aircraft
Take advantage of WAAS GPS navigation with LPV approaches, which offer minimums as low as 200’ to greatly expand your operational capability
Pairs with select Garmin flight displays, or integrates directly with your existing course deviation indicator (CDI) for cost-effective installation¹
Visualize your entire flight plan, including departures, arrivals, instrument approaches, holding patterns and more on a rich, dynamic global moving map
Wirelessly transfer flight plans and stream weather, traffic, GPS position and backup attitude via built-in Connext® technology to the Garmin Pilot™ app and more
Big capabilities come in a small package with the GPS 175 navigator. With its bright, clear high-resolution touchscreen display, you can have the advanced navigation functions you’ve always dreamed of. Entering flight information is a cinch, and accessing every function is fast and easy. It’s equally at home in certificated aircraft or an experimental aircraft. And it’s the same 2” height as older navigation equipment and can allow you to keep the legacy composite CDI already in your aircraft to minimize installation cost¹. That makes GPS 175 the smart, affordable way to add next-generation navigation to your favorite airplane.

Specifications
Physical and Performance
TSO applicability: C146e Class 3; C157b Category 1; C165a; C195b Category B1, B3, B5, B7
Display size: 4.8" (122.5 mm) diagonal
Display resolution: 732 pixels (W) x 240 pixels (H)
Unit bezel height: 2.02" (51.0 mm)
Unit bezel width: 6.25" (159.0 mm)
Unit depth with connectors: 6.58" (167 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 1.3 lbs (0.6 kg)
Maximum altitude: 35,000 ft
Input voltage range: 9 VDC - 33 VDC
Maximum display brightness: 260 fL
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Bluetooth version: 4.2
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
Maximum velocity: 1,000 knots (above 60,000 feet)
Position update Interval: 0.2 sec (5 Hz)
